Product Overview

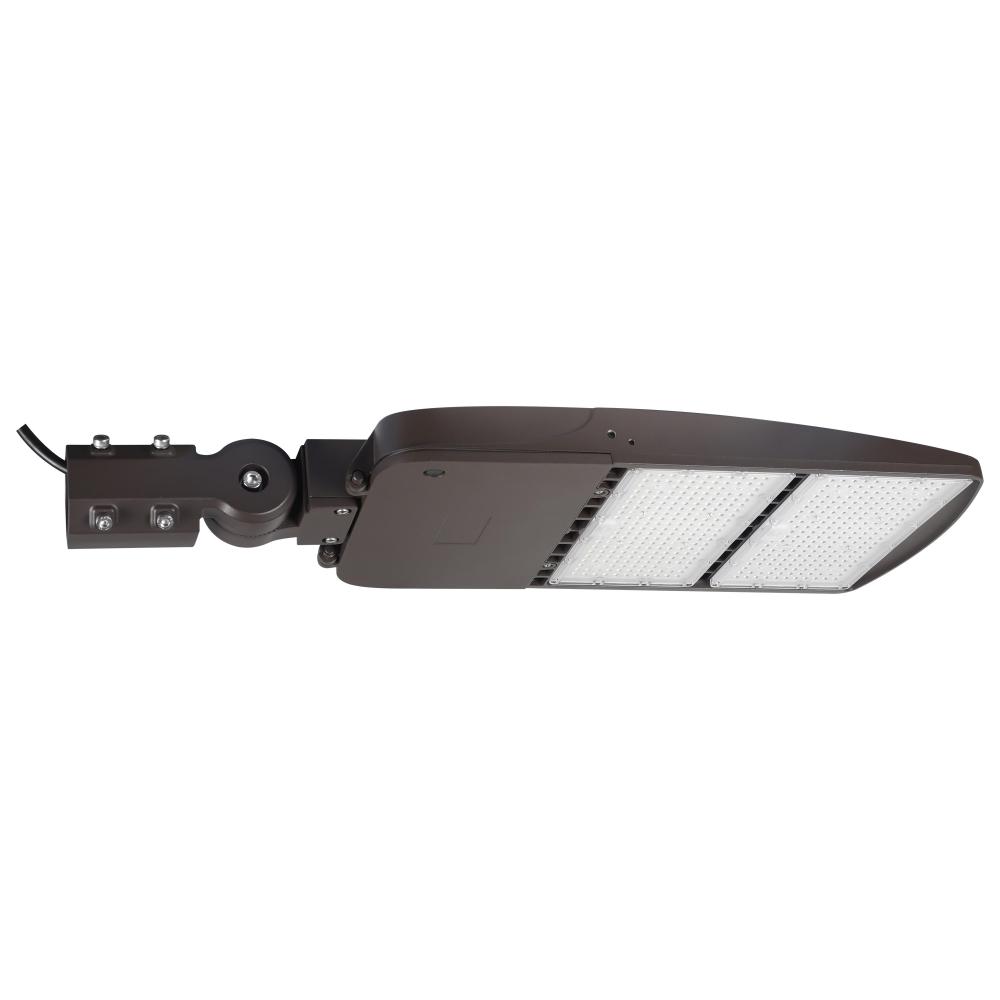

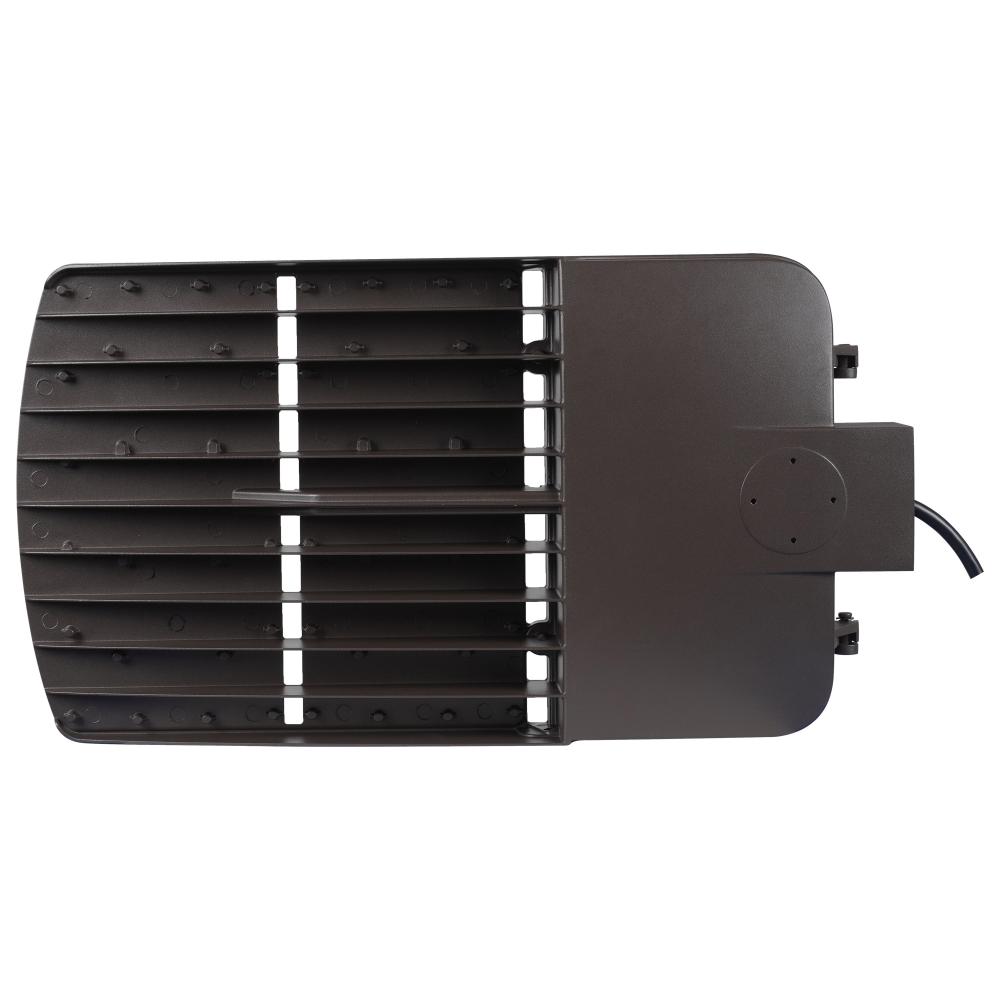

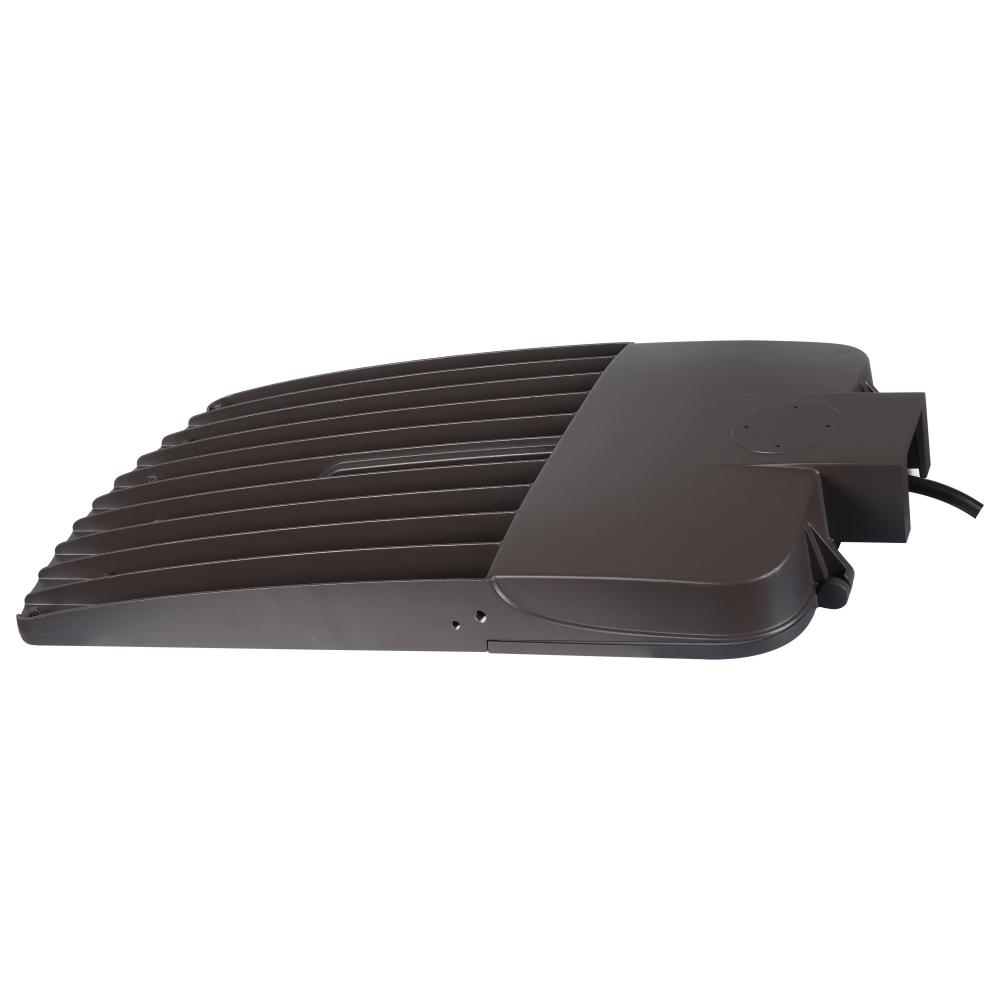

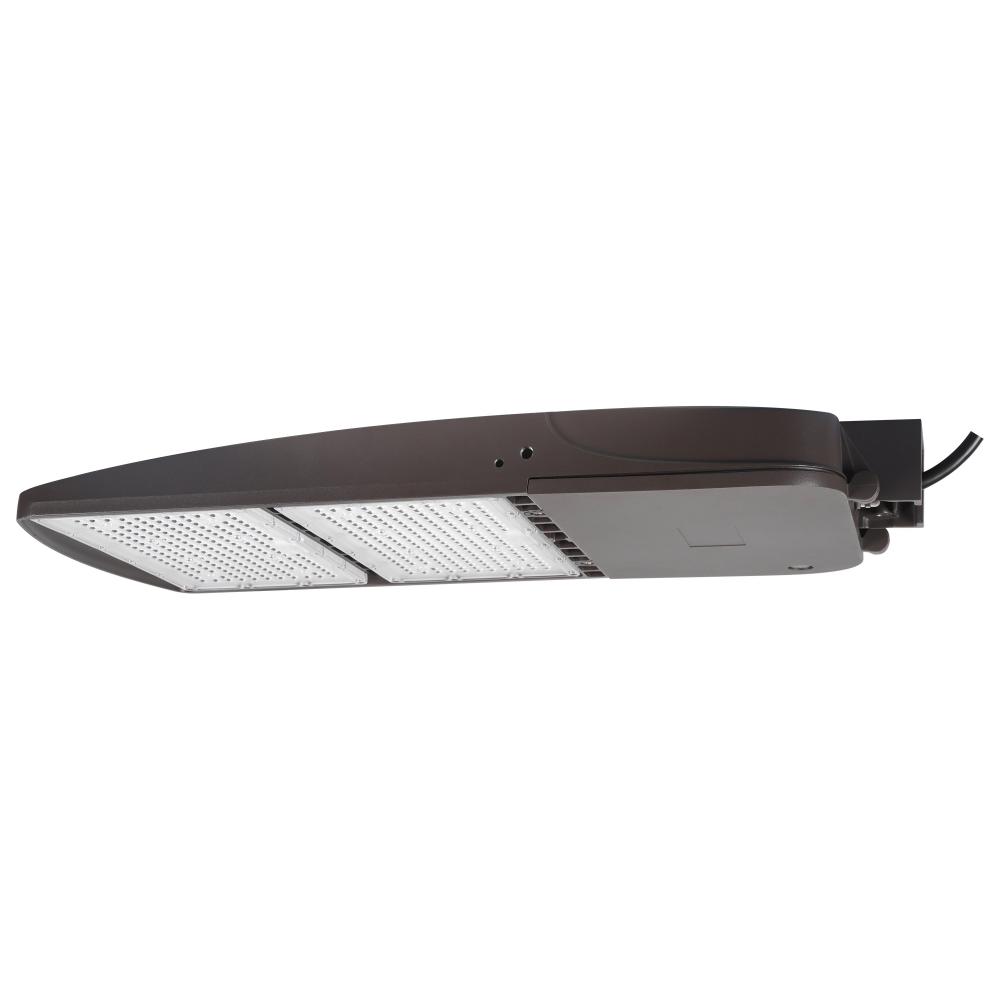

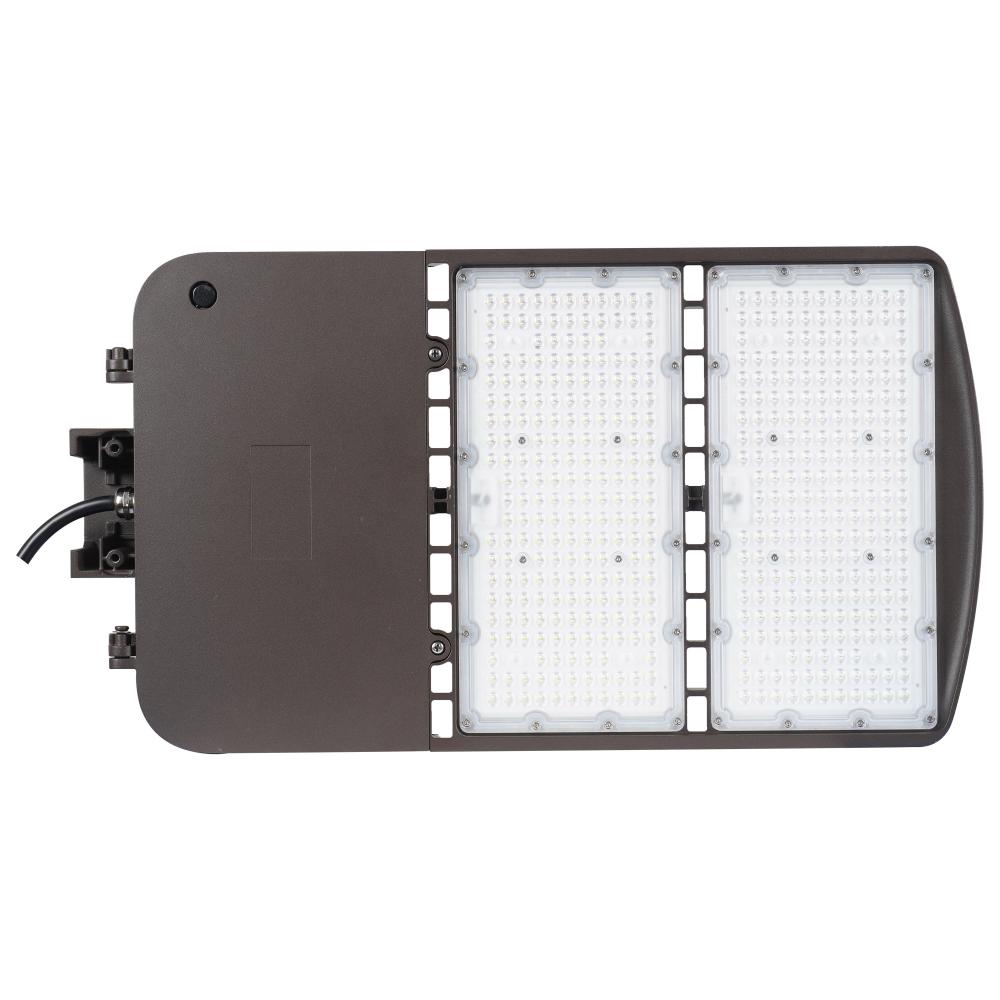

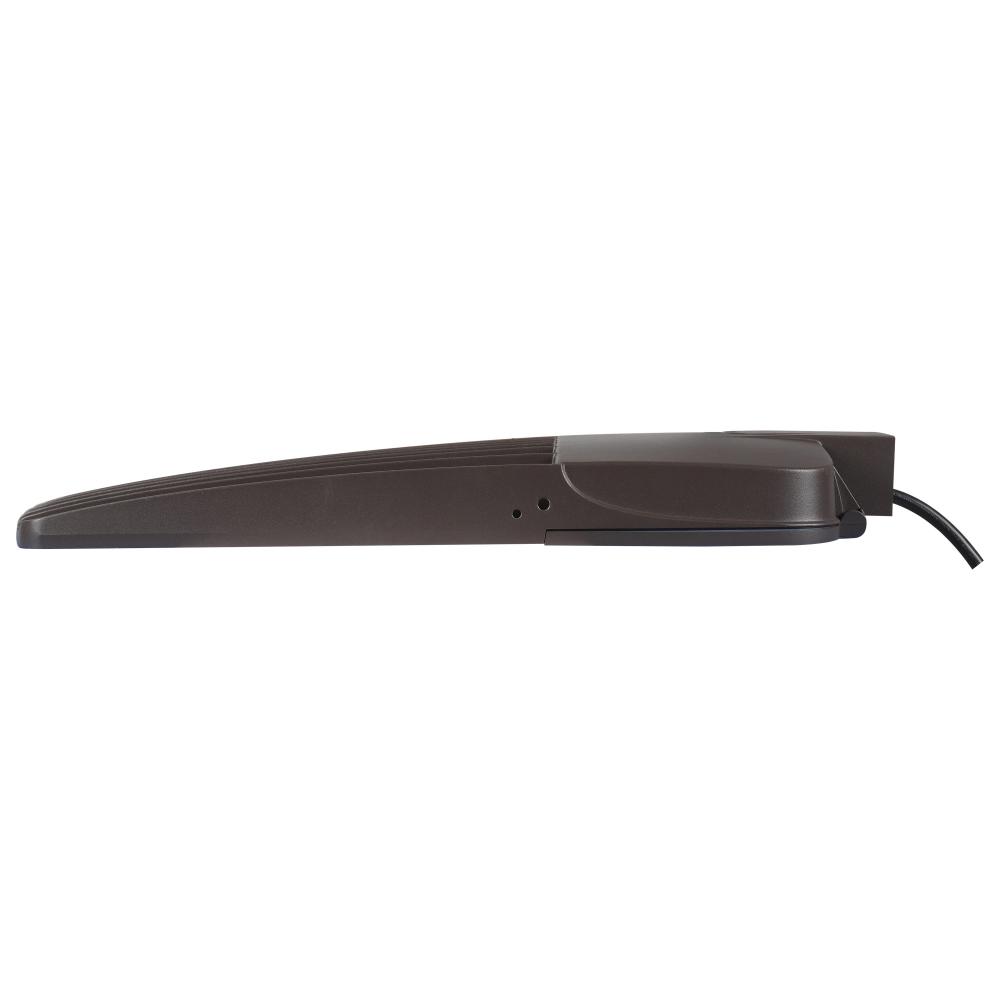

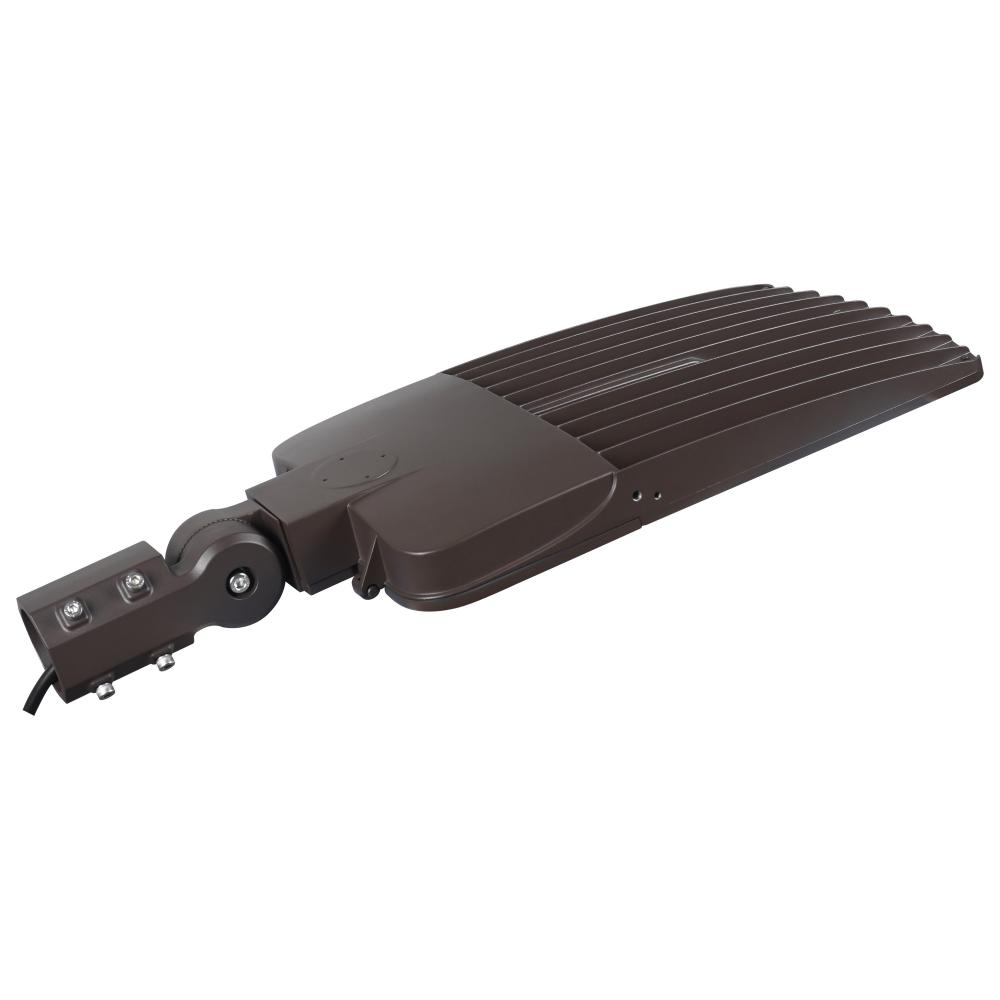

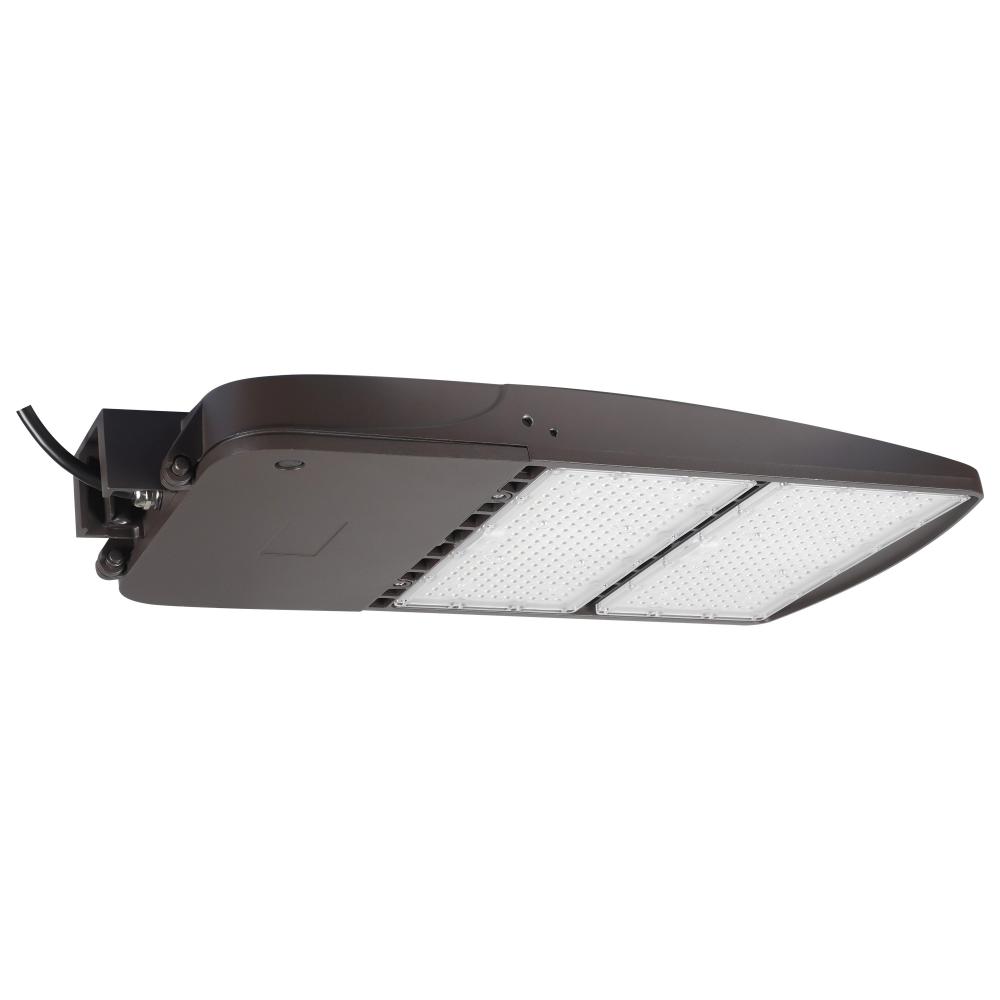

LED Area Light Type III; 240W; Bronze Finish; 5000K; 277-480V

Standard Information

Category:

Landscape Ltg.

Subcategory:

Path Lights

Finish:

Bronze

Option:

LED

Prop 65

Lumens:

3300+

Kelvin:

5501-6000

Refinement Options

Category:

Outdoor

Sub Category:

Area Light

Style:

Utility

Additional Info:

Powder Coated

Avg Rated Hours:

50000

Bulb Shape1:

Integrated LED

Bulb Type1:

LED

Color Temperature:

Natural Light

Dimmable:

Yes-Dimmable

Each Height:

5.71

Each Length:

32.76

Each Width:

14.37

Length:

30.28

Lumens:

32585L

Tariff Code:

9405.42.6000

Warranty:

5 Year Limited - Fixtures

Amps:

0.866-0.500A

ANSI Base:

Integrated

BAA Compliant:

No

B_U_G_Rating:

B4-U3-G4

CA Prop-65:

Lead

CCT Selectable:

No

CEC:

T20 Exempt - Fixtures Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Connection:

Hardwire

Country Of Origin:

Vietnam

CRI:

80

Dark Sky Rated:

No

Dimmable Down To:

100 to 20 percent

Dimmable Function:

0-10V Dimming

DLC Classification:

Premium

DLC Primary Use:

Outdoor Pole/Arm-Mounted Area and Roadway Luminaires

Each Cube:

1.5556

Each Quantity:

1

Efficacy:

135.77 LPW

FCC Compliant:

Yes

Feature 1:

Maintenance free - no bulb to change

Feature 2:

Die-cast Aluminum Body

Feature 3:

UV Stabilized powder coasted bronze finish

Feature 4:

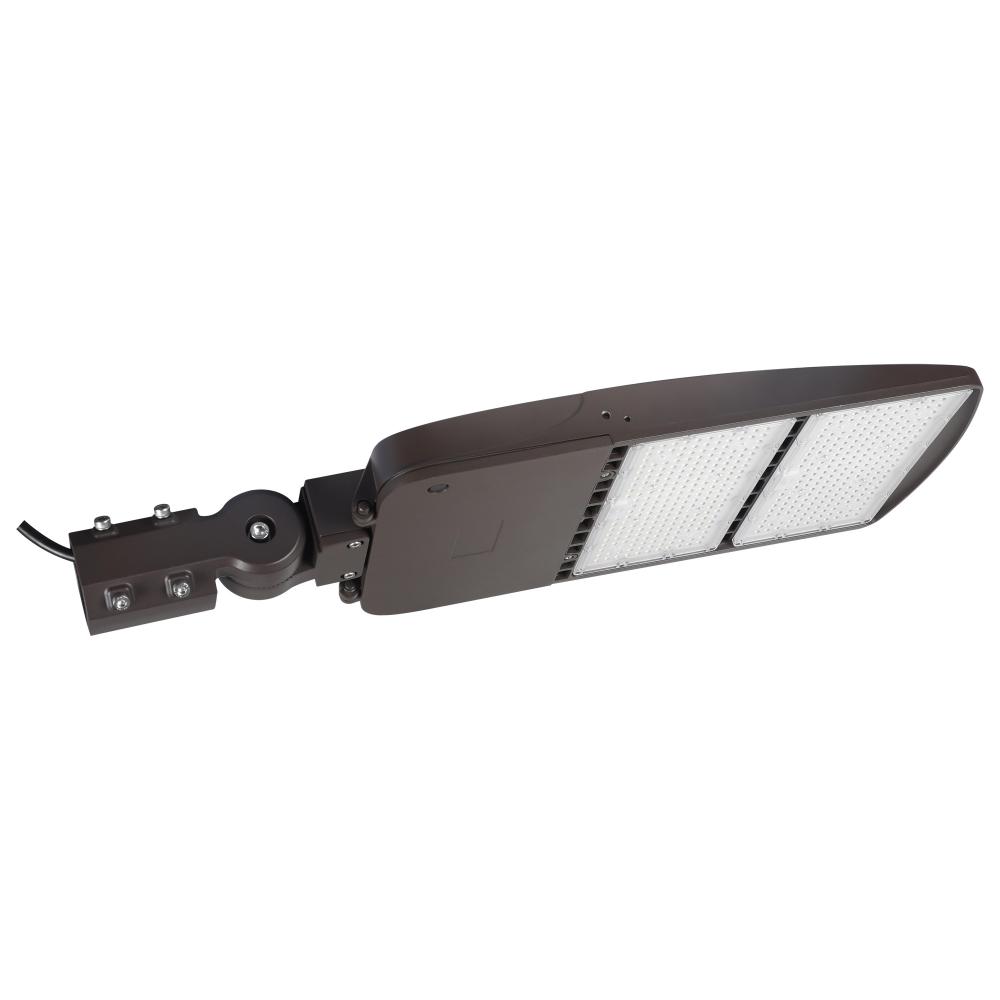

Slip-fitter mount included

Feature 5:

IP65 Rated

Feature 6:

Multiple mounting options available

Feature 7:

Add-on sensors available

Finish Family:

Bronze

HID Equiv:

500W

Impact Rating (IK):

IK10

Incandescent Equivalent:

2000W

Includes:

2-3/8 inch Slip-fitter Mount

Indoor Outdoor:

Indoor;Outdoor

IOT Enabled:

No

IP Rating:

IP65

JA8 Compliant:

No

Lens Material:

Polycarbonate (PC)

Long Description:

SATCO|NUVO's 65-867 240W LED Area Light Type III provides natural white light, engineered for the highest performance in multiple applications. The lamp's high lumen count provides superior illumination. SATCO|NUVO's LED Area Lights, built usin

Material:

Die-cast Aluminum

Operating Frequency:

50/60Hz

Operating Temp:

-40C (-40F) to +45C (+113F)

Pack Type:

Box

Photocell:

Optional

Power Factor:

>0.9

Quantity In Pack:

1

R9 Value:

9

Replaceable Light Source:

No

RoHS Compliant:

Yes

Romance Copy:

SATCO|NUVO's LED Area Light Type III provides natural white light, engineered for the highest performance in multiple applications. The lamp's high lumen count provides superior illumination. SATCO|NUVO's LED Area Lights, built using die cast a

Safety Listing:

cULus - Certified

SDS class:

LED_Fixture

Short Description:

240W LED AREA LIGHT TYPE III

Specification Notes:

Type III Light Distribution

Temperature (CCT):

5000K

Title 20 Compliant:

No

Title 24 Compliant:

No

Total Harmonic Distortion:

8.10%

Wattage Selectable:

No

Weight Lb.:

11.93

Manufacturer Info

Manufactured By:

Nuvo
