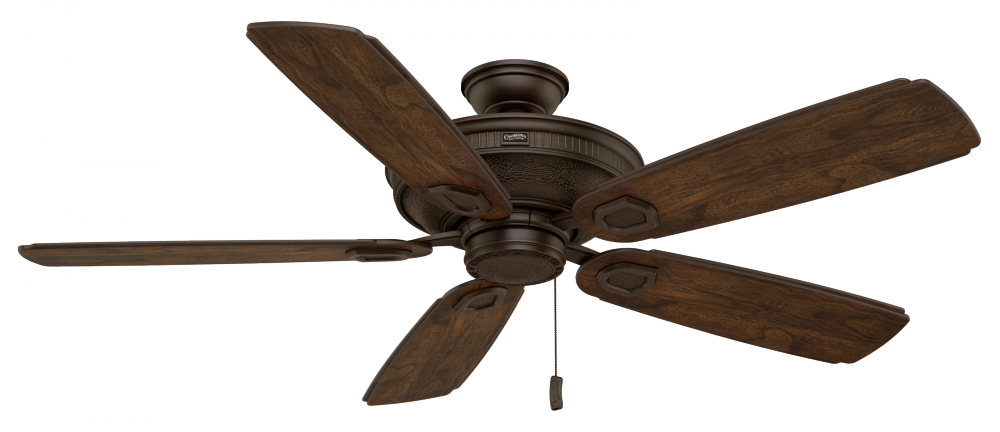

During the Industrial Revolution, innovations in manufacturing enabled artisans to create furniture from cast iron. The Heritage fan incorporates many of the design details featured in antique castings, including vertical ribbing on its motor housing, raised type on the switch cap, and a custom cobblestone texture on the fan body, cap and inset portions of the blade medallions. Designed with stainless steel hardware to withstand the elements, this wet-rated ceiling fan is an ideal addition to any areas exposed directly to weather like your large patio or pergola.
Energy Information at High Speed
Airflow:
3758 Cubic Feet per Minute
Electricity Rate:
48 Watts (excluded lights)
Airflow Efficiency:
78 Cubic Feet Per Minute Per Watt
Standard Information
Category:
Fans
Subcategory:
Ceiling Fans
Style:
Industrial
Voltage:
100-120
Number of Blades:
5 Blades
Refinement Options
Category:
Fan
Finish:
Brushed Cocoa
Style:
Farmhouse
Industrial
Traditional
Option:
ETL Approved
Family:
Heritage
Voltage:
120 V/60 Hz
Air Flow CFM:
3758
Air Flow Efficiency:
78
Amperage:
0.68
Blade Finish:
Reclaimed Antique
Blade Pitch:
13
Blade Span:
60
Blades Included:
Yes
Canopy:
Height- 2.75, Width- 6.49
Designer:
Heritage
Down Rod Included:
2
3
Electricity Used:
48
Light Kit Included:
No
Motor Fan Speed:
4
Motor RPM:
142
Motor Size:
188 x 20
Motor Type:
Direct Drive
Pull Chain Included:
Yes
Ship Carton Height:
10.7
Ship Carton Length:
17.6
Ship Carton Width:
26
Ship Weight:
30.2
Sold By:
EA
Special Features:
Features Stainless Steel Hardware To Resist Rust
Warranty:
Limited Lifetime Motor Warranty
Weight:
26.01
6 Square (ID):
Casual Traditional
Airflow:
3758
Amps High:
0.68
Amps Low:
0.37
Amps Medium:
0.51
Batteries Included:
No
Blade Material:
Carved Wood
Blade Overlay:
Paint
Blade Pitch Feature:
13 degree blade pitch optimized to ensure ideal air movement and peak performance
Blade Side 1 Finish:
Reclaimed Antique
Blade Side 2 Finish:
Reclaimed Antique
Blade Side Feature:
5 Reclaimed Antique blades included
Bulb Included:
No
Can be used without Lightkits:
No
Canopy Mounting Feature:
Installer's Choice® three-position mounting system allows for standard, low, or angled mounting
Canopy Type Description:
Standard Platform
Carton Cubic Feet:
2.83
Ceiling to Bottom of Fan:
46.02
CFM High:
6463
CFM Low:
3902
CFM Medium:
5428
Country of Origin:
CN
Dim A - Angled - Ceiling to Bottom of Fan:
46.02
Dim A - Standard - Ceiling to Bottom of Fan:
13.02
Dim A Angled Ceiling To Bottom Of Fan:
46.02
Dim A Flush Ceiling To Bottom Of Fan:
12.02
Dim A Standard Ceiling To Bottom Of Fan:
13.02
Dim B - Angled - Ceiling to Bottom of Fan Blade:
44.97
Dim B - Flush - Ceiling to Bottom of Fan Blade:
10.97
Dim B - Standard - Ceiling to Bottom of Fan Blade:
11.97
Dim B Angled Ceiling To Bottom Of Fan Blade:
44.97
Dim B Flush Ceiling To Bottom Of Fan Blade:
10.97
Dim B Standard Ceiling To Bottom Of Fan Blade:
11.97
Dim C - Standard - Ceiling to Bottom of Canopy:
2.75
Dim C Standard Ceiling To Bottom Of Canopy:
2.75
Dim D - Standard - Width of Fan Body:
15.96
Dim D Standard Width Of Fan Body:
15.96
Dim E - Standard - Canopy Width:
6.49
Dim E Standard Canopy Width:
6.49
Dim G - Standard - Height of Motor Housing:
5
Dim G Standard Height Of Motor Housing:
5.00
Dips on Receiver:
No
Downrod Feature:
Includes 3'' and 2'' downrods to ensure proper distance from the ceiling and optimize air movement at your preferred blade height
Estimated Yearly Energy Cost:
13
ETL Approved:
Yes
Five Minute Fan:
No
Housing Feature:
Brushed Cocoa finish
Housing Finish:
Brushed Cocoa
LED Indicator on Transmitter:
No
LED Light Kit:
No
Light Spec:
No Light Kit Included
Location Feature:

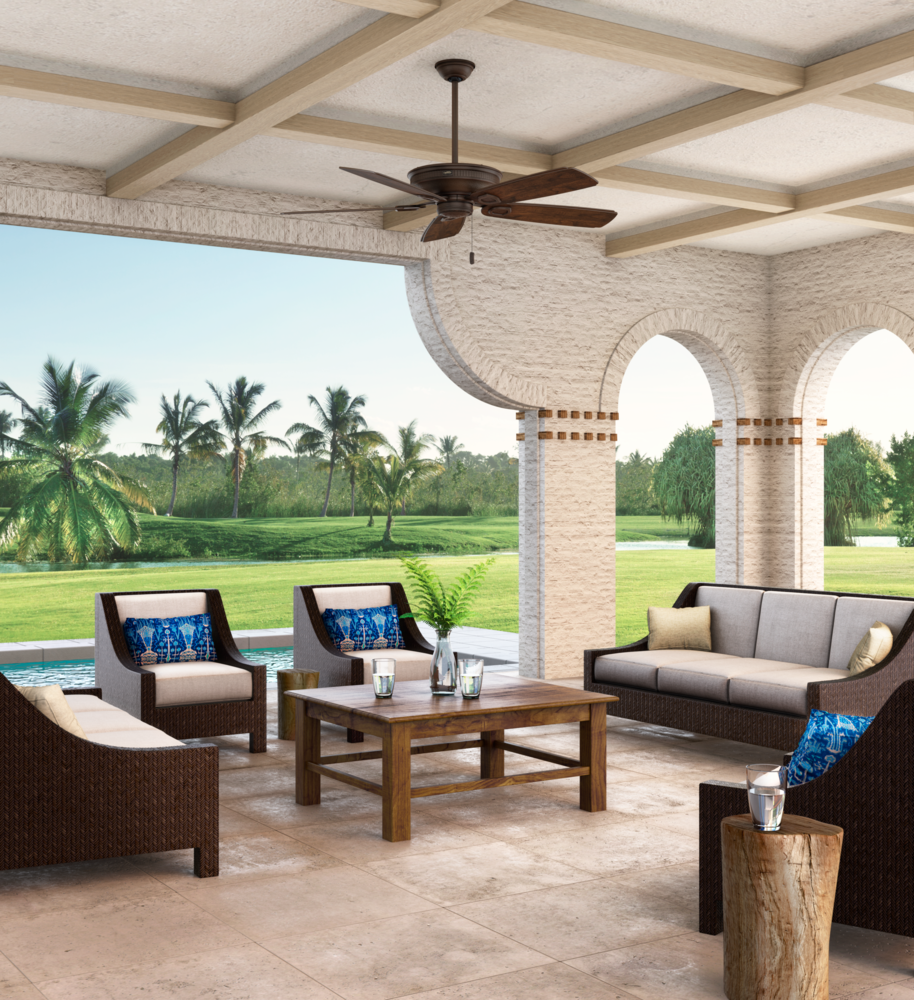

Wet rated for use in outdoor areas directly exposed to weather such as pergolas and also great indoors
Motor Type Feature:
Reversible, 4-speed Direct Drive™ motor provides unparalleled power, silent performance, and reliability over decades of daily use
Mounting Options:
Installer's Choice® three position mounting system allows for standard, low or angled mounting
Mounting Options Friendly Value:
Installer's Choice® three position mounting system allows for standard, low or angled mounting
No Light Cap Included:
No
No-Light Cap Included:
No
Number of Blades:
5
Pop Lock Blades:
No
Pop-Lock Blades:
No
Product Portfolio:
Casablanca
Pull Chain Feature:
Includes pull chains for quick and easy on/off and speed adjustments
Reversable Motor:
Yes
Reversible Blades:
Yes
Reversible Motor:
Reversible motor allows you to change the direction of your fan from downdraft mode during the summer which helps cool the room to updraft mode during the winter to help circulate trapped warm air near the ceiling.
RPM High:
142
RPM Low:
75
RPM Medium:
106
RPM Medum:
106
Safety Rating:
ETL
Serenity Speed Feature:
Extra low serenity speed produces a uniquely soothing breeze, while graceful blade movement creates a luxurious look and mood
Shipping Cubic Feet:
2.83
SIMPLEconnect:
No
Softlights:
No
Speeds:
4
Speeds Feature:
4 Speeds
Stainless Steel Hardware:
Yes
Stainless Steel hardware Feature:
Features stainless steel hardware to resist rust
Sure Speed:
No
SureSpeed:
No
Tunable White:
No
Twist Lock Glass:
No
Ultra Low Profile:
No
Uplight Downlight Separate Control:
No
Warranty Feature:
Limited Lifetime Motor Warranty is backed by the only company with over 130 years in the fan business
Wet Rated:
Yes
13 degree blade pitch optimized to ensure ideal air movement and peak performance
4 Speeds
5 Reclaimed Antique blades included
Brushed Cocoa finish
Extra low serenity speed produces a uniquely soothing breeze, while graceful blade movement creates a luxurious look and mood
Features stainless steel hardware to resist rust
Includes 3'' and 2'' downrods to ensure proper distance from the ceiling and optimize air movement at your preferred blade height
Includes pull chains for quick and easy on/off and speed adjustments
Installer's Choice® three position mounting system allows for standard, low or angled mounting
Installer's Choice® three-position mounting system allows for standard, low, or angled mounting
Limited Lifetime Motor Warranty is backed by the only company with over 130 years in the fan business
Reversible motor allows you to change the direction of your fan from downdraft mode during the summer which helps cool the room to updraft mode during the winter to help circulate trapped warm air near the ceiling.
Reversible, 4-speed Direct Drive™ motor provides unparalleled power, silent performance, and reliability over decades of daily use
Wet rated for use in outdoor areas directly exposed to weather such as pergolas and also great indoors
