The Windpointe by Fanimation combines style and versatility to fit any room. Choose from a variety of fashionable blade options paired with three, four, or five blade motors. Options include traditional carved wood blades in finishes like Cairo purple and sambal sand, or more organic choices like palm leaf or woven bamboo blades. The Windpointe 3-blade series is Energy Star-rated and suitable for dry and damp locations. It accommodates ceiling slopes up to 30 degrees, offers three forward/reverse speeds, and includes a 6-inch downrod with an optional close-to-ceiling kit. Available in multiple finishes, it’s compatible with most smart home devices (control sold separately) and features reversible airflow for year-round use.
Beautifully crafted with style and versatility in mind, The Windpointe by Fanimation will provide the right look for any room. A myriad of fashionable blade options can be paired with The Windpointe?s three, four and five blade motors. For those in the market for a more traditional ceiling fan, The Windpointe can be paired with a variety of carved wood blades in finishes ranging from cairo purple to sambel sand. For a more organic look, The Windpointe can be paired with an array of natural palm leaf blades or woven bamboo blades. The Windpointe 3 blade series has earned the Energy Star for energy efficiency and is rated for both dry and damp locations. All Windpointe ceiling fans can accommodate a ceiling slope up to 30 degrees and operate on three forward and reverse speeds. The Windpointe series includes a 6 inch downrod and can also be purchased with an optional close-to-ceiling kit. *The Antique Brass finish is Dry Rated for indoor use, while the oil-Rubbed Bronze and Rust finish are Damp Rated for indoor or outdoor use *Compatible with most smart home devices (required control sold separately) *Reversible airflow for multi-season use
Standard Information
Category:
Fans
Subcategory:
Ceiling Fans with Light
Finish:
Rust
Style:
Contemporary
Option:
Energy Efficient
Energy Star
Outdoor
Damp Rated
Voltage:
100-120
Number of Blades:
5 Blades
Location Rating:
Damp Rated
Refinement Options
Category:
Unipack
Finish:
Rust
Option:
Energy Efficient
Energy Star
Outdoor
Family:
Windpointe
Voltage:
120 V
Air Flow CFM:
3177
Air Flow Efficiency:
66
Blade Finish:
Narrow Oval Antique Bamboo
Blade Pitch:
18
Canopy:
5.75 Dia x 2.57 H
Harmonized Codes:
8414.51.3000
Light Kit Included:
No
Motor Size:
188 x 25
Motor Type:
AC
Ship Carton Height:
11.93
Ship Carton Length:
24.13
Ship Carton Width:
13.15
Ship Weight:
30
Sold By:
EA
Warranty:
Limited Lifetime
Weight:
24.9
Airflow Efficiency Low:
113
Airflow Efficiency Medium:
62
Avg Airflow Efficiency:
74
Avg CFM Energy:
2374
Avg Energy Use:
32
Avg Estimated Yearly Energy Cost:
9
Avg Estimated Yearly Energy Cost on HIGH:
13
Blade Finish Method:
Painted
Blade Material:
Woven Bamboo
Blade Reversible:
No
Blade Sweep:
52
Cap Included:
No
Carton Cubic Feet:
2.19
Case Height:
11.93
Case Length:
24.13
Case Quantity:
1
Case Weight Pounds:
32.65
Case Width:
13.15
CEC Uploaded:
Yes
Ceiling To Blade Edge:
14
Ceiling To Bottom (No Light Kit):
14.5
CFM Low:
1566
CFM Medium:
1867
Country of Origin:
China
Current Draw High:
0.4
Current Draw Low:
0.22
Current Draw Medium:
0.32
DOE Classification:
LSSD
DOE-FTC Uploaded:
Yes
Downrod Length:
6
Energy Efficient:
Yes
Energy Star:
Yes
Exempt from DOE Procedure:
No
Fan Energy Star 4:
No
Housing Diameter:
9.06
Included Control Type:
Pull Chain
Indoor:
Yes
Leadwire:
80
Location Rating:
Damp Rated
Max Ceiling Slope:
27
Motor Finish Method Type:
Painted
Motor Reversible:
Yes
Number of Blades:
5
Number Of Speeds:
3
Outdoor:
Yes
Prop 65 Description:
View
Regulated Product:
Yes
Reverse Switch Location:
Switch Housing
RPM High:
114
RPM Low:
59
RPM Medium:
81
Safety Rating:
UL Approved, cUL Approved
Voltage Cycles:
60 Hz
Watts High:
48
Watts Low:
14
Watts Medium:
30
CONTROL: Includes a pull chain to power fan and adjust fan speeds

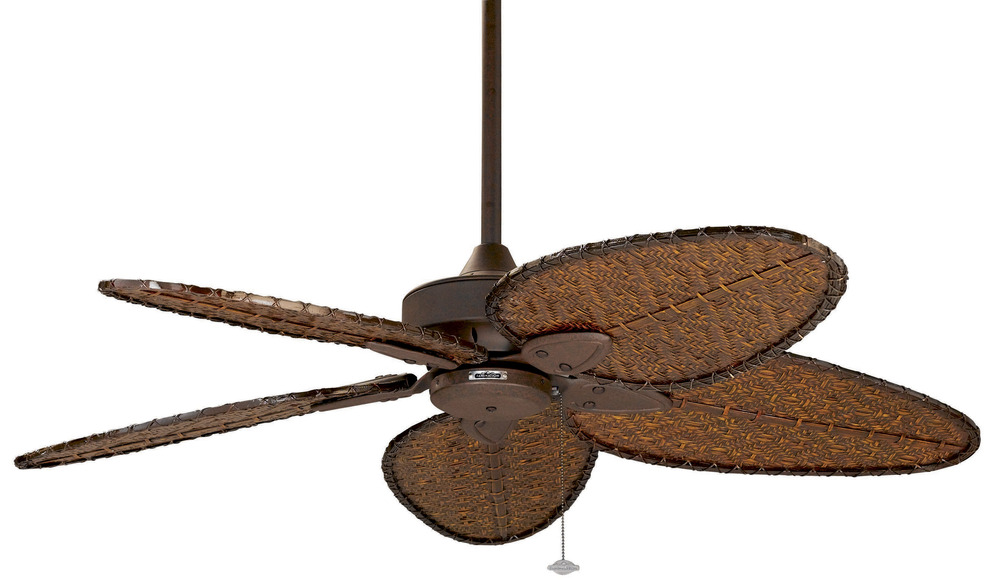

FINISH: Rust ceiling fan from the Windpointe Collection features 5 Woven Antique Bamboo blades
INSTALLATION: Mounts to flat or minimally sloped ceilings with the included 1-in diameter x 6-in length downrod.
LIGHTING: Compatible with either a light fitter or light kit for versatility (light kit sold separately)
LOCATION: Damp Rated for use in indoor and outdoor covered spaces exposed to moisture and humidity
Optional downrods are available in lengths up to 72 inches to adjust the fans height between 7-ft to 9-ft from the floor, ensuring maximum airflow.
POWER: The 3-speed, energy efficient AC Motor provides airflow up to 3,177 CFM
SAVINGS: Features a reversible motor, allowing you to switch the direction of your fans rotation and create energy savings
TECHNOLOGY: Compatible with Fanimation WiFi fanSync and most smart home devices (required controls sold separately)
