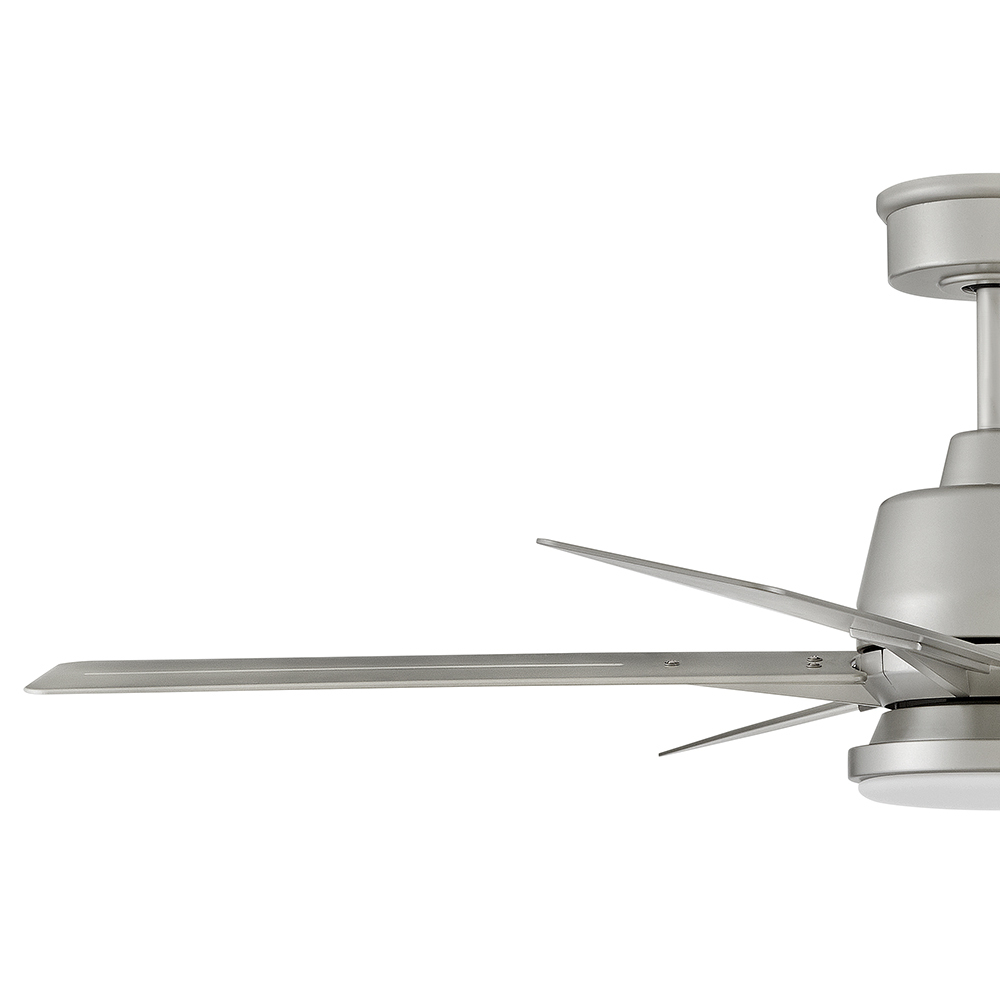

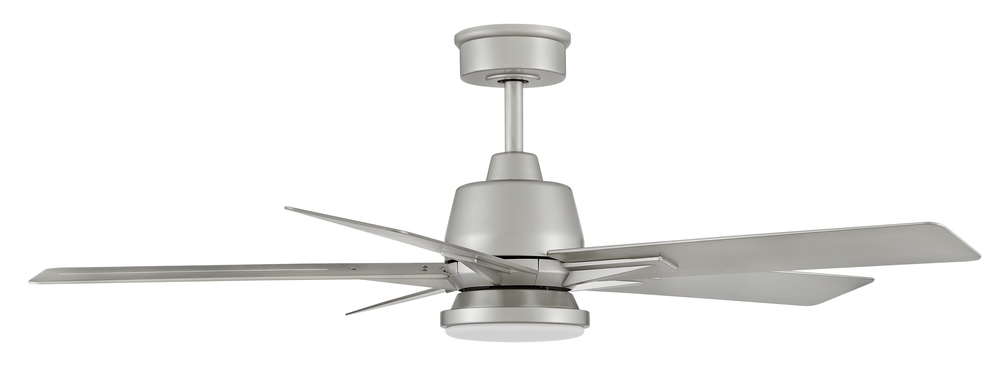

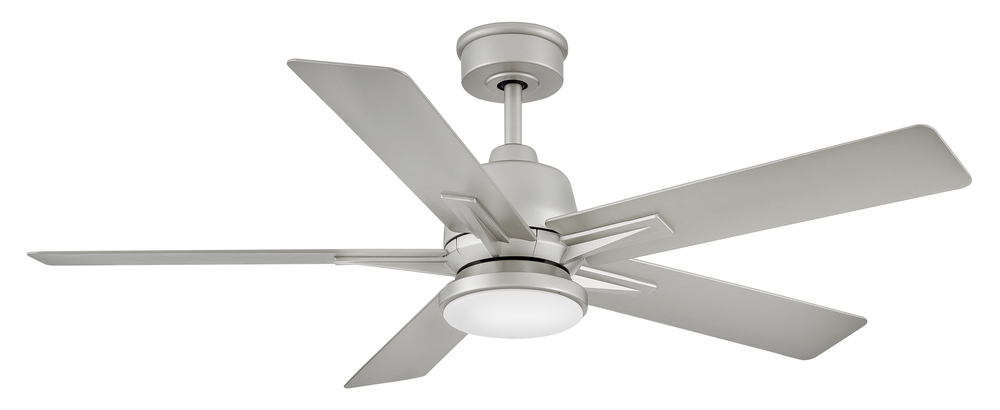

Modern and refined, Alta elevates transitional design styles throughout the home. Integrated LED and DC motor technology deliver excellent energy efficiency, suitable for both indoor and outdoor settings. Operated by the HIRO control or WiFi compatible with the Hinkley app.
Standard Information
Category:
Exterior
Fans
Subcategory:
Exterior Fans
Ceiling Fans with Light
Finish:
Nickel
White
Style:
Transitional
Option:
Wet Rated
Prop 65
Voltage:
100-120
Lumens:
1101-1600
Number of Blades:
5 Blades
Kelvin:
2501-3000
Location Rating:
Wet Rated
Refinement Options
Category:
Fan
Finish:
Brushed Nickel
Style:
Transitional
Family:
Alta
Glass:
White Frosted
Voltage:
120 V
Number of Bulbs:
1 Bulbs
Air Flow Efficiency:
5747
Amperage:
0.36
Blade Finish:
Brushed Nickel
Blade Pitch:
14

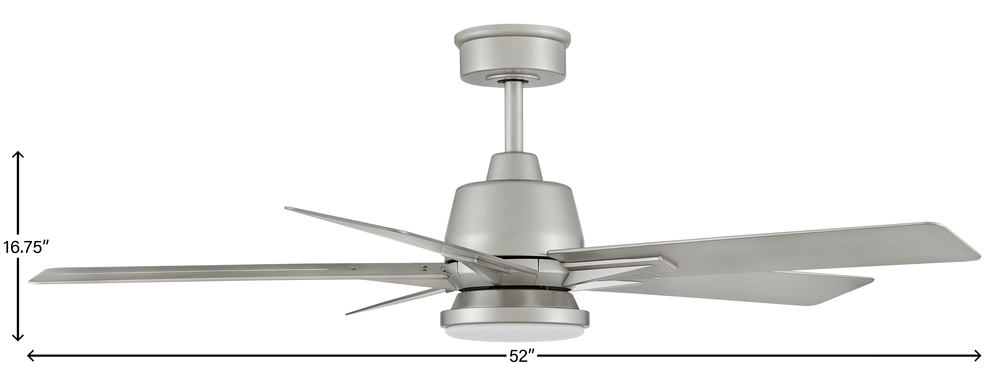

Blade Span:
52
Blades Included:
Yes
Bulb Dimmable:
Yes - CL Type Dimmer (SSL7A)
Bulb Hours:
50000
Bulb Type:
LED

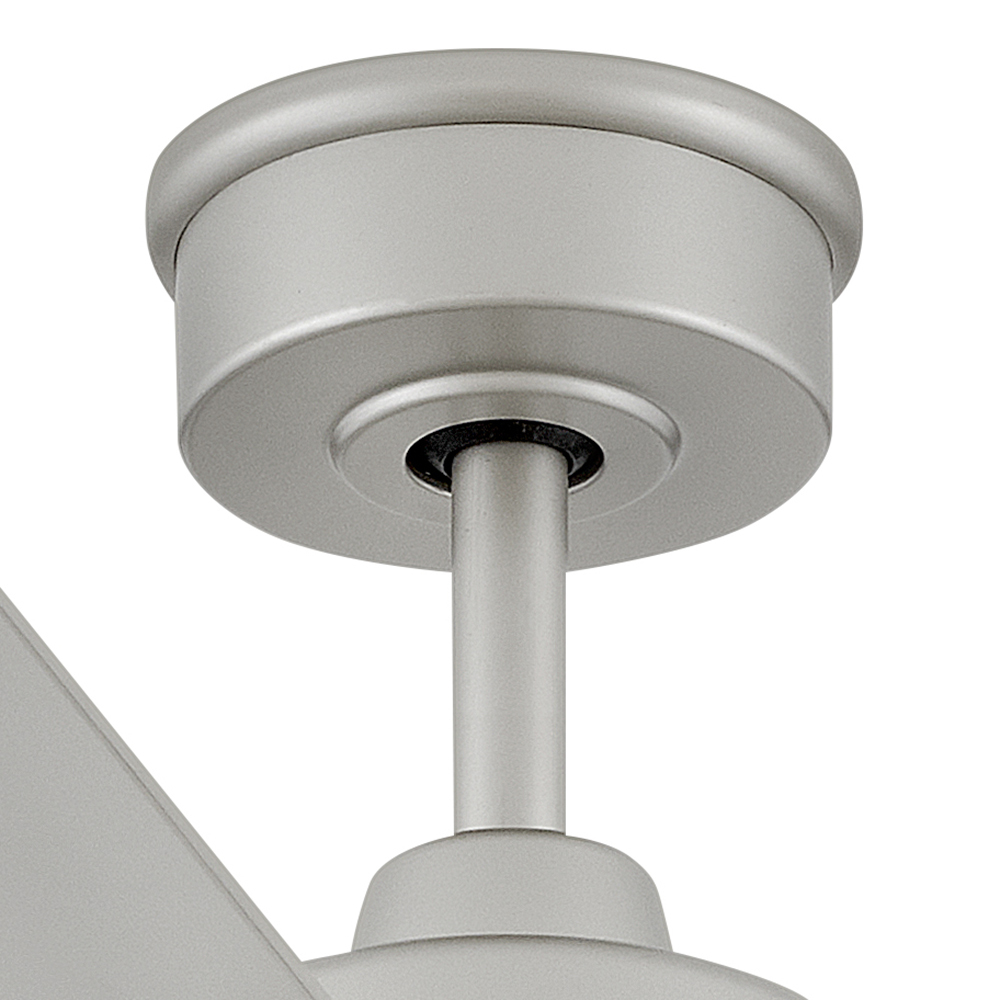

Canopy:
6.5 Dia. x 2.5 D
Introduction Date:
01/01/2023

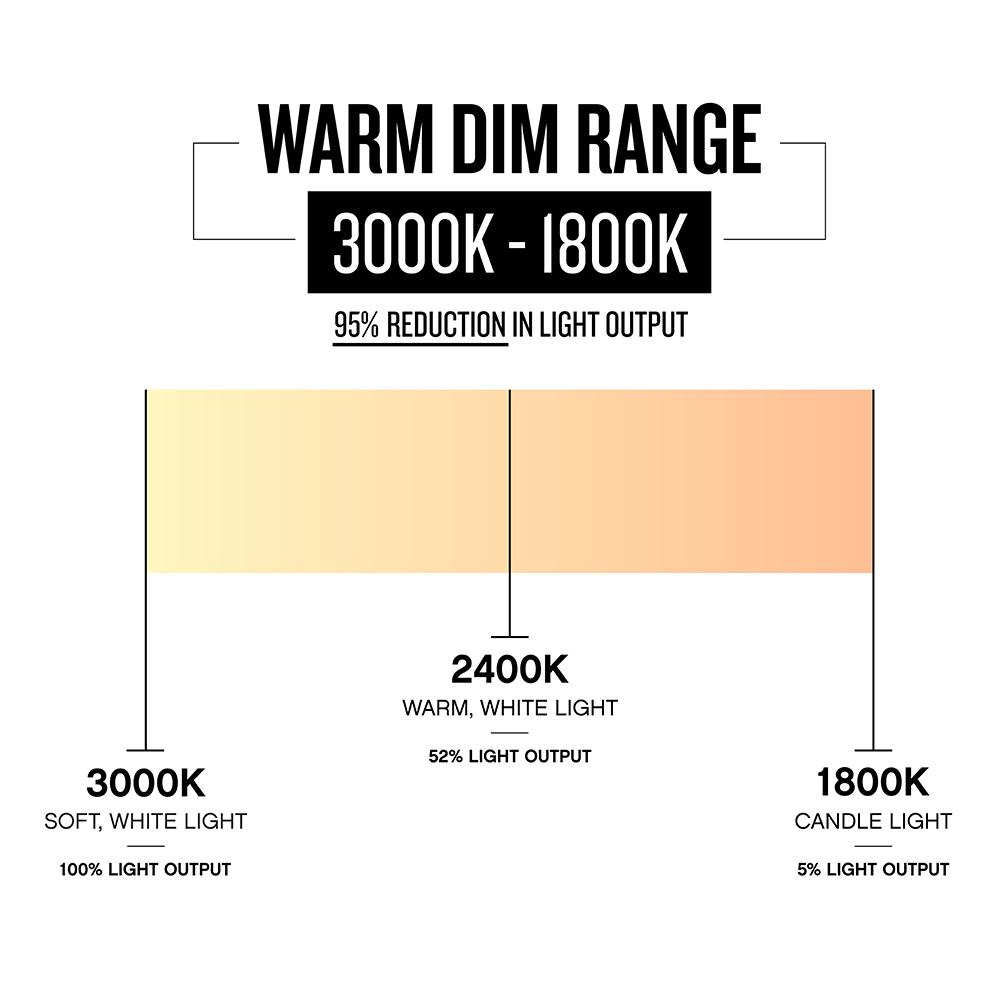

Kelvin:
3000
Light Kit Included:
Yes
Lumens / Light Output:
1320
Material:
Steel
Motor Size:
DC 178 x 12
Motor Type:
DC
Ship Carton Height:
9
Ship Carton Length:
28.9
Ship Carton Width:
13
Ship Weight:
22.97
Vendor Ship Method:
Parcel
Weight:
17.33
Airflow Avg:
3906
AMPS Avg:
0.22
Avg Energy Use:
17
Blade Material:
Composite
Blade Options Available:
No
Blade To Ceiling Height:
11.5
Blades Reversible:
No
Bulb CRI:
90
Bulb Included:
Yes

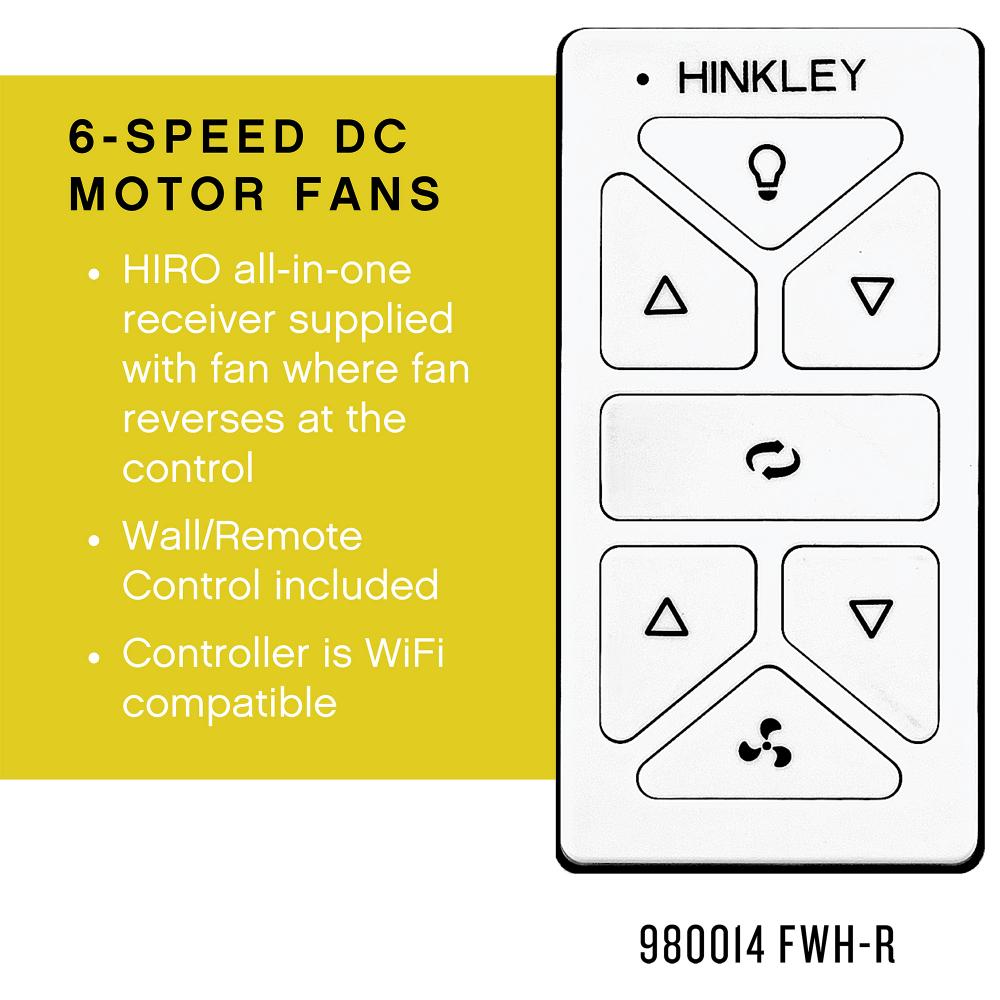

Control Type:
HIRO Control - 6 Speed Reversing
Country of Origin:
China
Dual Mount:
No
Efficiency Avg:
224
Efficiency High:
257
Energy Cost Avg:
5
Energy Cost High:
6
Energy Use High:
22.4
Fan Control:
Yes
Flush Mount Fan:
No
Incandescent Equivalency:
100 W
Light Kit Adaptable:
No
Light Source:
Integrated LED
Location Rating:
Wet Rated
Max Wattage:
16 W
Motor Fan Speed:
6
Number of Blades:
5
Operating Frequency:
60
Prop 65 Description:
View
Receiver Included:
Yes
Reversing Control:
Yes
RPMS Avg:
112
RPMS High:
173
Safety Rating:
UL Approved, C-US Approved
Single Power Switch:
No
Slope:
20
Sloped Ceiling Adaptable:
Yes
Stand By Power:
0.2
Title 24:
No
WIFI Control Included:
Yes
WIFI Control Optional:
No
Blades, controls, switches, capacitors and hardware carry a 1-year warranty

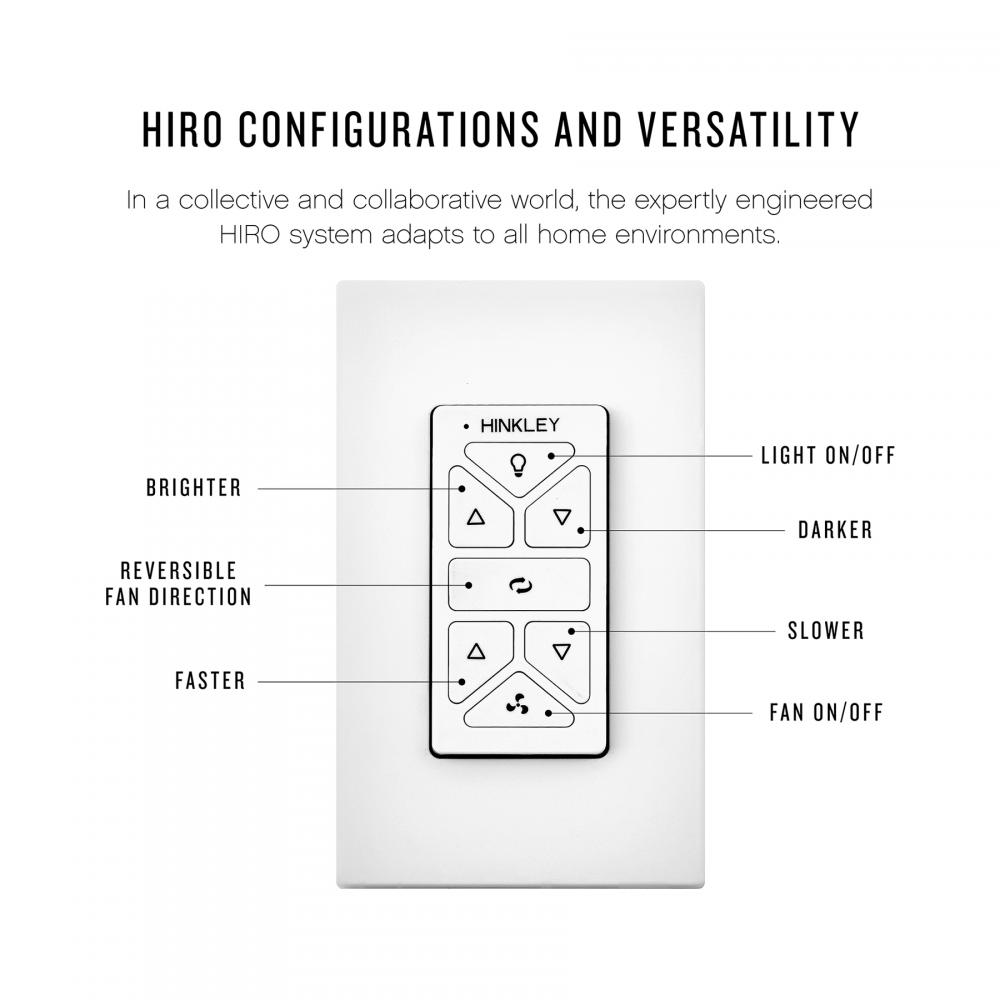

Fan Control included, HIRO Control - 6 Speed Reversing
Fans should be installed at a minimum of 7 feet from the floor
For more information on how to control your ceiling fan via the Hinkley Home Automation App, click here.
LED components carry a 5-year limited warranty
Merging the best of traditional and modern elements with a sophisticated and streamlined look
Motor carries a lifetime warranty
Powered by a highly efficient and quiet DC motor
Suitable for use in wet (outdoor direct rain) locations as defined by NEC and CEC. Meets United States UL Underwriters Laboratories & CSA Canadian Standards Association Product Safety Standards
This item includes a 6" down rod. Other various lengths of down rods are available and sold separately to customize the installation height.
This item may be hung on a sloped ceiling
This product uses recyclable or limited packaging materials to help reduce waste.

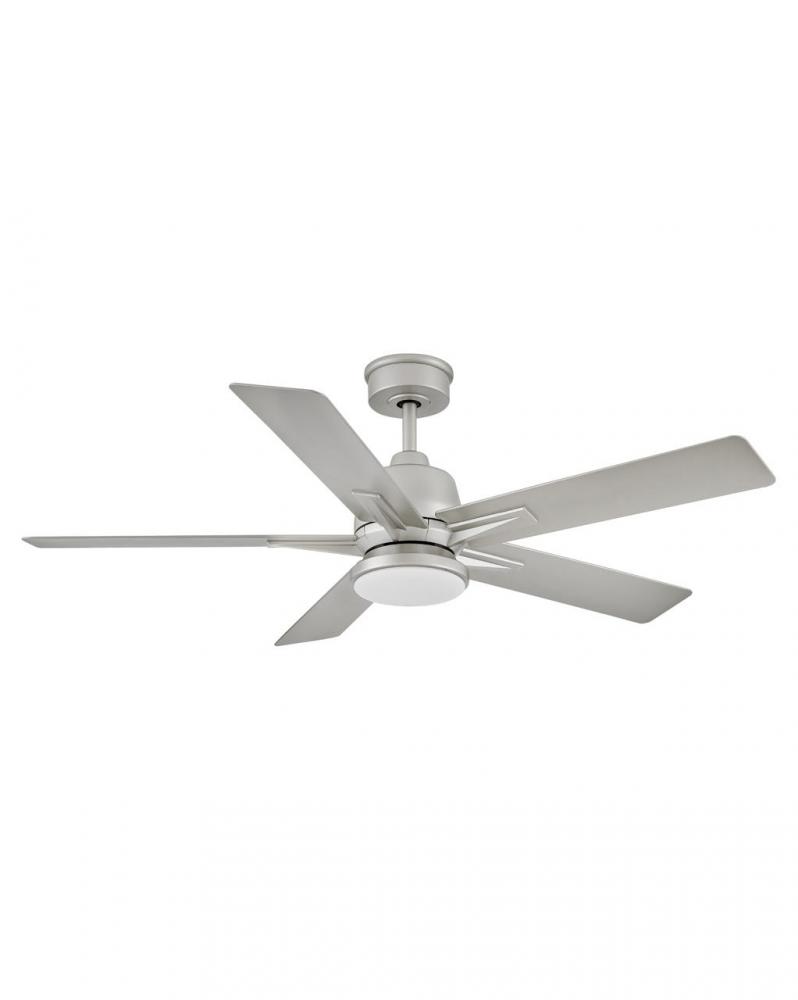

![Alta 52" LED Smart Fan](/vendors/87/large/905152fbn-lwd_NoCS31846x01182023NoCE.jpg "Alta 52" LED Smart Fan")
