Product Overview

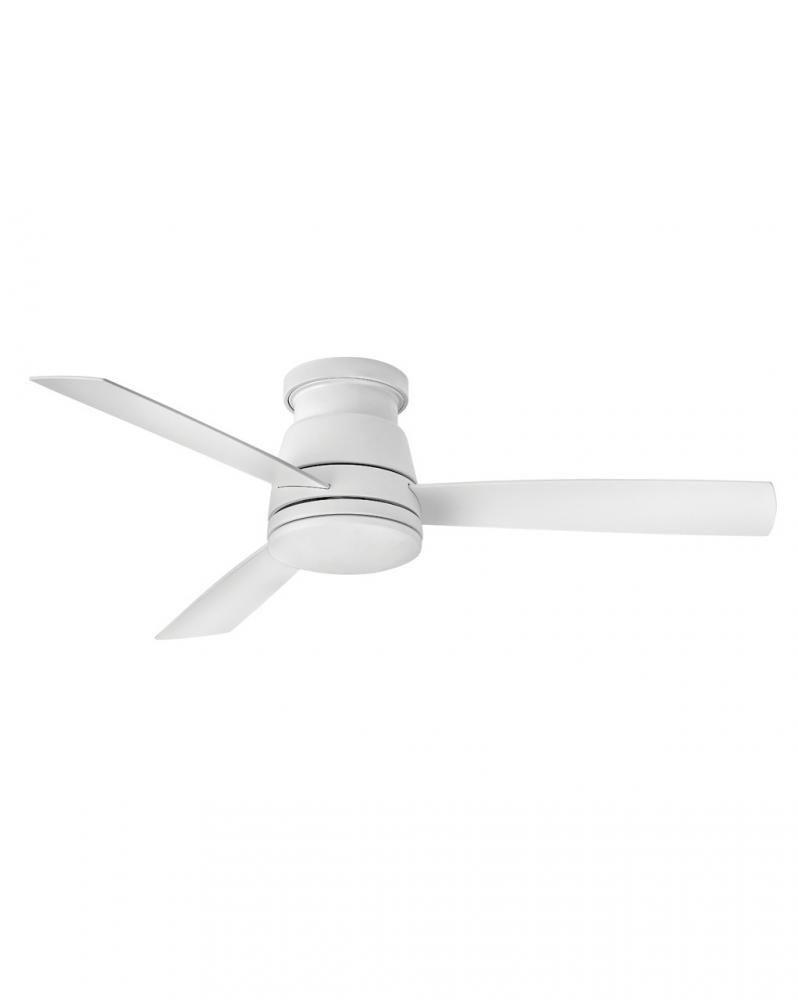

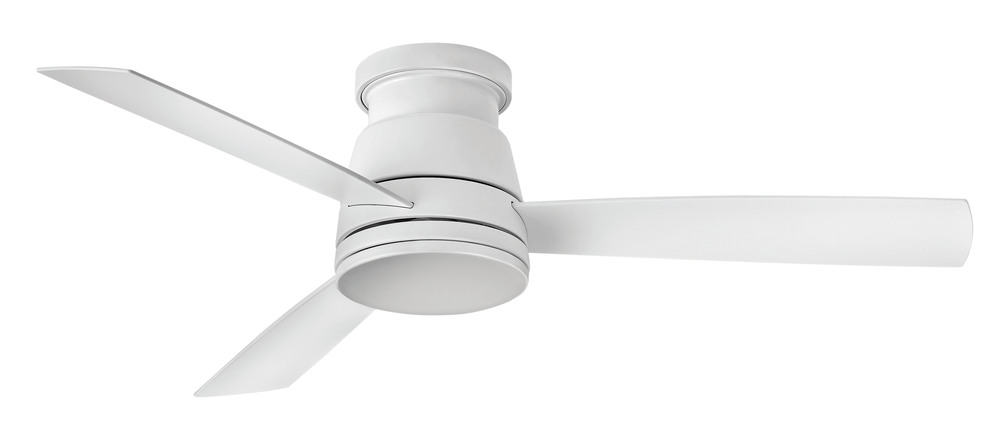

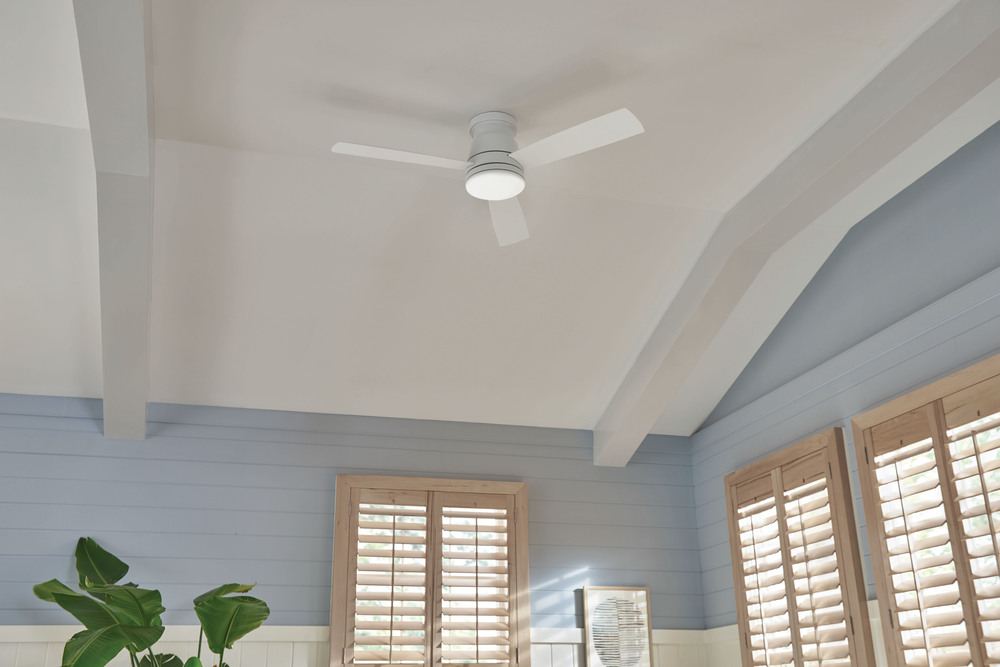

Trey features a sleek flush mount design that packs a powerful punch. Its transitional style comes equipped with robust blades that seamlessly pair performance and precision. Trey is offered in versatile Brushed Nickel, Metallic Matte Bronze and Matte White finish options, and its integrated LED lighting and DC motor technology deliver excellent energy efficiency. A timeless etched opal light kit completes the look for a refined appearance. Trey is so versatile; it can be used for both indoor and outdoor spaces. Blades are included with every fan.

Standard Information

Category:

Exterior

Fans

Subcategory:

Exterior Fans

Outdoor Fans

Finish:

White

Style:

Transitional

Option:

Title 24

Wet Rated

LED

Prop 65

Voltage:

100-120

Lumens:

1101-1600

Number of Blades:

3 Blades

Kelvin:

2501-3000

Location Rating:

Wet Rated

Refinement Options

Category:

Fan

Finish:

Matte White

Style:

Transitional

Family:

Trey

Glass:

Etched Opal

Voltage:

120 V

Number of Bulbs:

1 Bulbs

Air Flow Efficiency:

4827

Amperage:

0.33

Blade Finish:

Matte White

Blade Pitch:

20

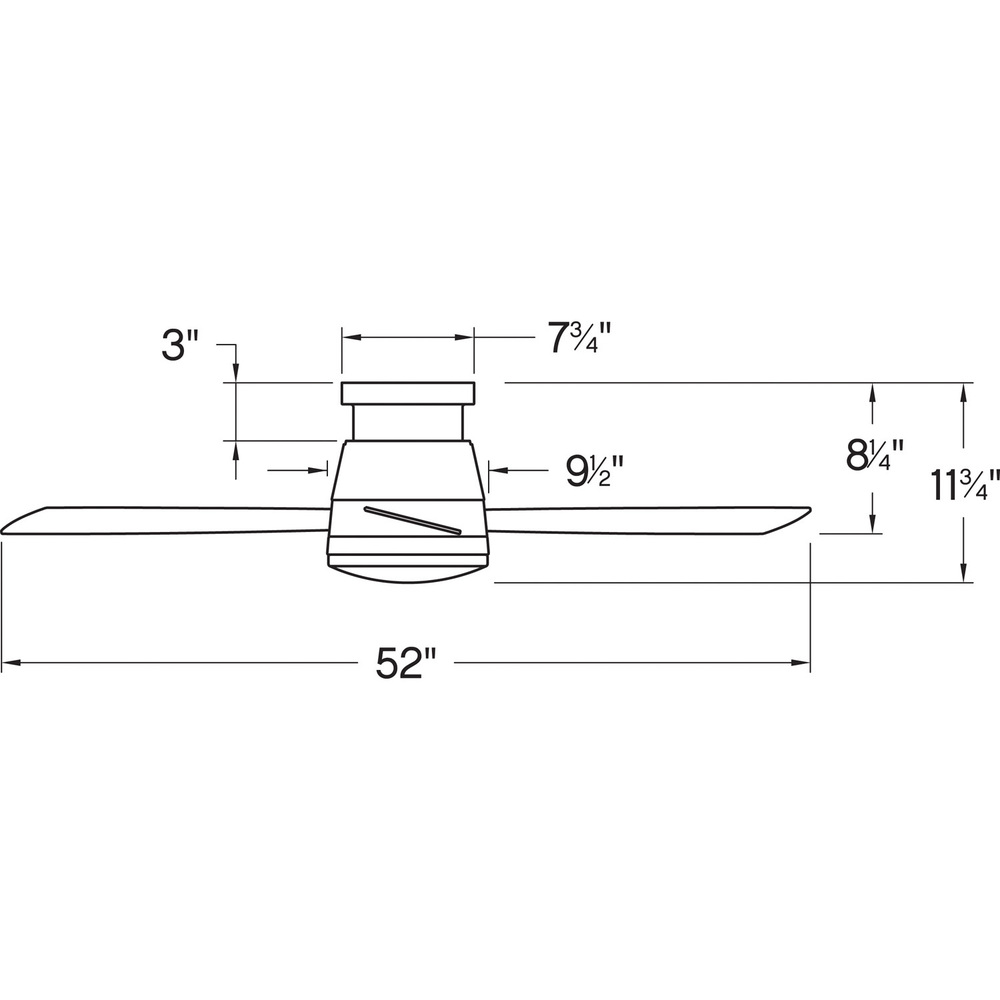

Blade Span:

52

Blades Included:

Yes

Bulb Dimmable:

Yes - CL Type Dimmer (SSL7A)

Bulb Hours:

50000

Bulb Type:

LED

Canopy:

7.75 Dia.

Introduction Date:

01/01/2020

Kelvin:

3000

Light Kit Included:

Yes

Lumens / Light Output:

1320

Material:

Aluminum

Motor Size:

153 x 10

Motor Type:

DC

Ship Carton Height:

12.5

Ship Carton Length:

26

Ship Carton Width:

12

Ship Weight:

26.5

Vendor Ship Method:

Parcel

Weight:

24.5

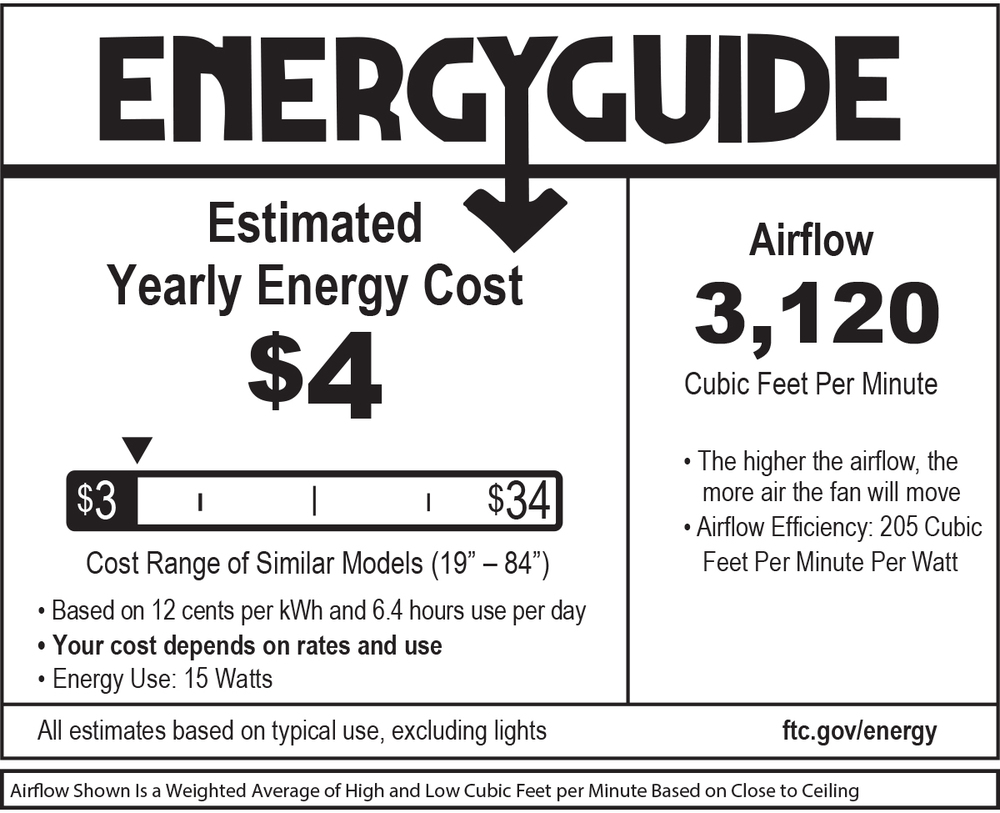

Airflow Avg:

3120

AMPS Avg:

0.19

Avg Energy Use:

15

Blade Material:

Composite

Blade Options Available:

No

Blade To Ceiling Height:

8.25

Blades Reversible:

No

Bulb CRI:

90

Bulb Included:

Yes

Control Type:

HIRO Control - 6 Speed Reversing

Country of Origin:

China

Dual Mount:

No

Efficiency Avg:

205

Efficiency High:

200

Energy Cost Avg:

4

Energy Cost High:

7

Energy Use High:

24.2

Fan Control:

Yes

Flush Mount Fan:

Yes

Incandescent Equivalency:

100 W

Light Kit Adaptable:

No

Light Source:

Integrated LED

Location Rating:

Wet Rated

Max Wattage:

16 W

Motor Fan Speed:

6

Number of Blades:

3

Operating Frequency:

60

Prop 65 Description:

View

Receiver Included:

Yes

Reversing Control:

Yes

RPMS Avg:

108

RPMS High:

169

Safety Rating:

UL Approved, C-US Approved

Single Power Switch:

Yes

Sloped Ceiling Adaptable:

No

Stand By Power:

0.2

Title 24:

Yes

WIFI Control Included:

Yes

WIFI Control Optional:

No

Blades, controls, switches, capacitors and hardware carry a 1-year warranty

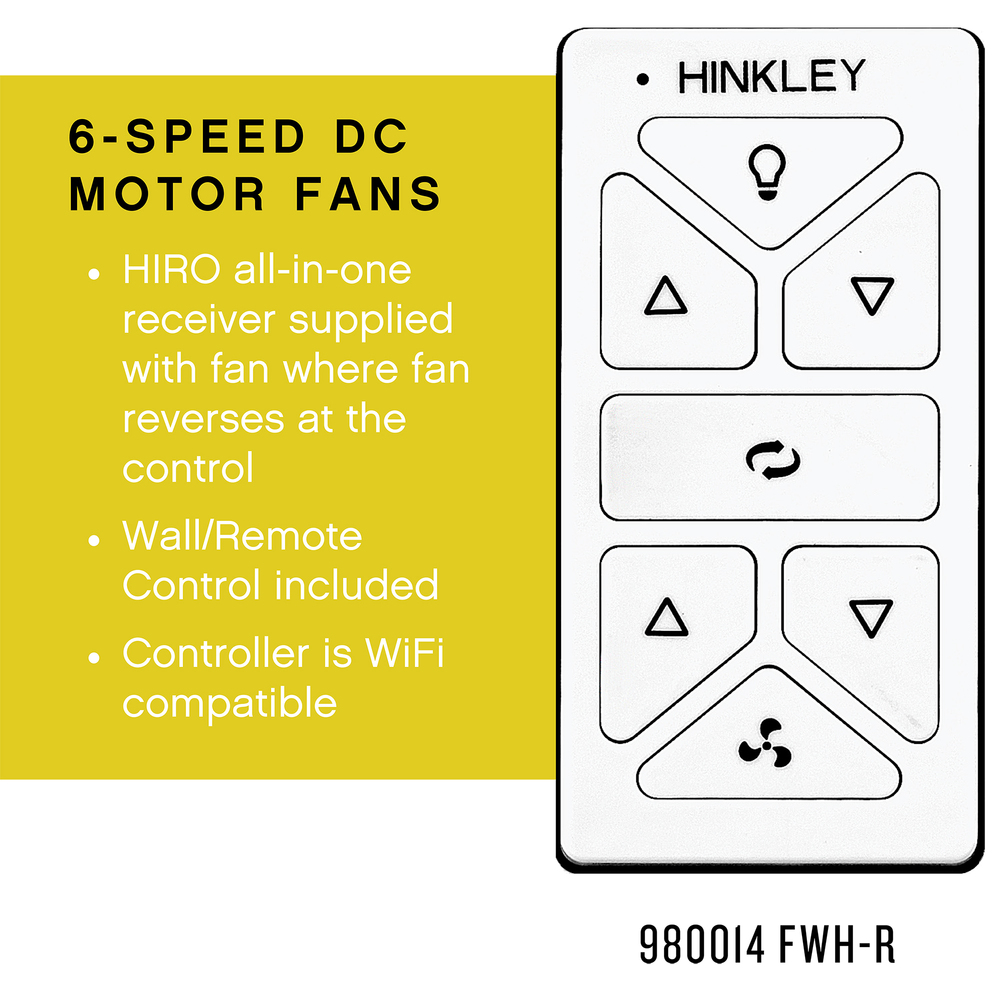

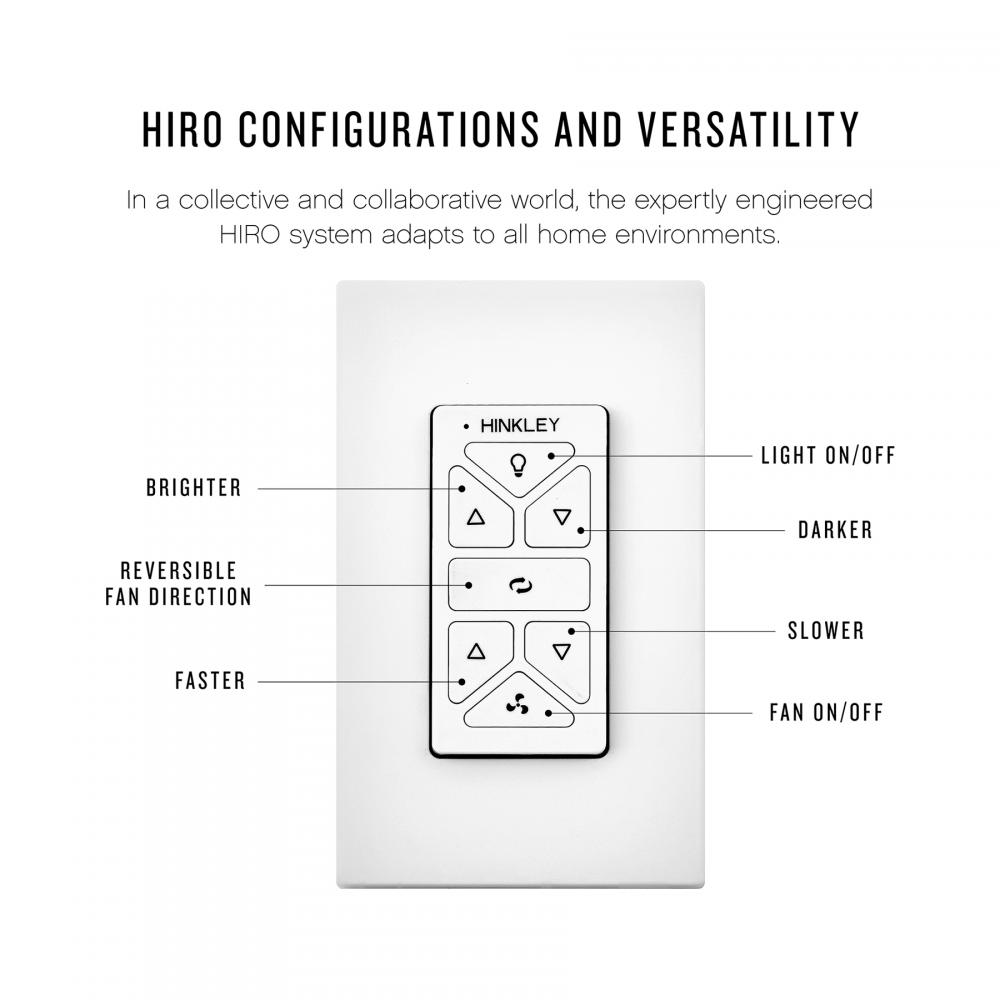

Fan Control included, HIRO Control - 6 Speed Reversing

Fans should be installed at a minimum of 7 feet from the floor

For more information on how to control your ceiling fan via the Hinkley Home Automation App, click here.

LED components carry a 5-year limited warranty

Merging the best of traditional and modern elements with a sophisticated and streamlined look

Motor carries a lifetime warranty

Suitable for use in wet (outdoor direct rain) locations as defined by NEC and CEC. Meets United States UL Underwriters Laboratories & CSA Canadian Standards Association Product Safety Standards

WiFi compatible with included fan control

Manufacturer Info

Manufactured By:

Hinkley
